Sonex

Silencers


Features
  • The Q-Tech high performance SONEX circular attenuators are the outcome of a testing and development programme in our insertion loss test facility.
  • Developed to provide high performances the SONEX range is designed for several applications.
  • Their prime use is for connecting to fans, but they are also ideal for connecting to supply air grilles or being positioned anywhere throughout a system where attenuation is necessary to remove noise generated by equipment.
  • In all situations they provide a known and dependable insertion loss, giving security to design engineers looking for quality installations in often difficult to handle situations.
Testing
  • All units have been tested in accordance with BS4718:1971 for insertion loss.
  • Air flow pressure loss data was obtained from tests conducted on a BS848 : Part 1, 1980 test rig.
  • Pressure losses are little more than those which would occur over a comparable section of straight duct.
Construction
  • The attenuator consists of a perforated tubular liner manufactured from sheet steel.
  • The liner is enclosed by a thick layer of mineral wool sound absorbing material.
  • Casing and end plates are formed from galvanised sheet steel.

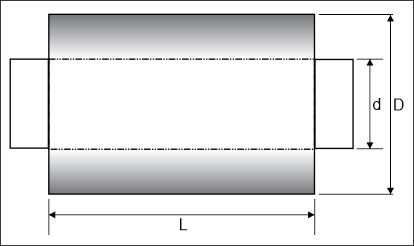

Model 63 125 250 500 1k 2k 4k d D L Kg
010-030 3 3 9 17 23 26 25 100 200 300 2.5
010-060 6 9 15 34 40 40 37 100 200 600 4
010-090 10 13 21 40 45 39 36 100 200 900 7
012-030 3 3 7 16 20 24 22 125 225 300 3.5
012-060 5 8 13 29 35 35 32 125 225 600 4.5
012-090 10 12 19 37 40 38 34 125 225 900 8
015-030 3 3 6 13 19 23 22 150 260 300 4
015-060 5 7 12 24 30 35 31 150 260 600 6
015-090 8 10 15 32 38 37 34 150 260 900 9
020-060 4 6 10 20 27 33 19 200 300 600 7.5
020-090 8 9 14 28 32 35 28 200 300 900 11
020-120 10 12 17 36 41 43 28 200 300 1200 14
025-060 4 5 10 19 25 29 18 250 355 600 10
025-090 6 7 12 23 30 30 22 250 355 900 14.5
025-120 8 10 15 32 37 38 26 250 355 1200 18
031-060 4 5 8 15 20 22 17 315 400 600 13
031-090 5 7 10 20 30 29 18 315 400 900 17.5
031-120 7 9 13 22 32 33 19 315 400 1200 21
036-060 3 5 9 14 20 17 14 355 455 600 19
036-090 4 7 11 19 29 23 18 355 455 900 34
036-120 6 9 14 24 33 27 20 355 455 1200 43
040-090 3 5 9 19 26 20 13 400 606 900 38
040-120 6 8 14 24 30 28 17 400 606 1200 50
050-090 3 4 9 15 23 17 12 500 711 900 43
050-120 5 7 13 18 26 23 15 500 711 1200 60
