Ceiling Vent Axial Fan
|
  |
  |
Features
- Whisper quiet aerodynamic grille and high performance fan blades.
- High performance air extraction.
- Low profile easy clean snap off grille.
- Insect proof grille.

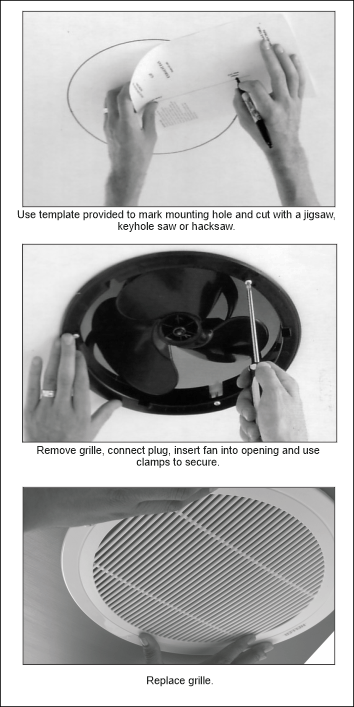

- Horizontal or vertical D.I.Y. installation.
- Fitted plug with 600mm of flex.
- Self locking fixing clamps.
- Long life motor.
|
Motors
- Electricity supply - 220-240V, single-phase, 50/60Hz.
- Motor protection Ip10
- Fitted with ball bearings.
|
| |
|
  |

|
| |

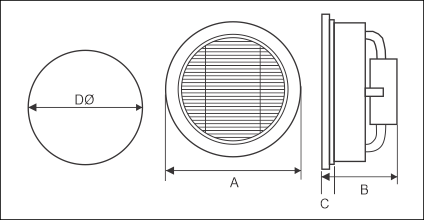

Dimensions
| Model |
A |
B |
C |
Dø |
| CEH200B |
280 |
115 |
12 |
235 |
| CEH250B |
330 |
125 |
12 |
290 |
|
| |
Technical Data
| Model |
V |
Hz |
W |
m3/hr |
mm |
| CEH200B |
280 |
115 |
12 |
235 |
|
| CEH250B |
330 |
125 |
12 |
290 |
|
Compared with sleeve bearing, ball bearing has the following advantages: Long life, low maintenance, low temperature compatibility. |
| |
|
 |
|
