Supply Valve
|
|
|
Features
|
|

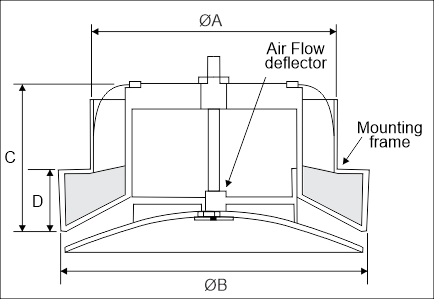

Dimensions
|
Model |
Aø |
Bø |
C |
D |
Kg |
10 |
100 |
150 |
66 |
30 |
0.14 |
12 |
125 |
175 |
71 |
35 |
0.21 |
16 |
160 |
200 |
76 |
40 |
0.27 |
|
Sound power level Hz, Correction of Sound level in Db at
|
Model |
63 |
125 |
250 |
500 |
1000 |
2000 |
4000 |
8000 |
10 |
1-3 |
3 |
7 |
4 |
-5 |
-13 |
-19 |
-20 |
12 |
-1 |
2 |
5 |
3 |
-1 |
-10 |
-19 |
-20 |
16 |
0 |
5 |
8 |
3 |
-4 |
-11 |
-20 |
-20 |
|
Sound attenuation Hz, Correction of Sound level in Db at
|
Model |
63 |
125 |
250 |
500 |
1000 |
2000 |
4000 |
8000 |
10 |
22 |
19 |
13 |
9 |
6 |
7 |
7 |
7 |
12 |
20 |
17 |
12 |
8 |
6 |
7 |
7 |
7 |
16 |
19 |
15 |
11 |
8 |
7 |
8 |
7 |
7 |
|
|
|
