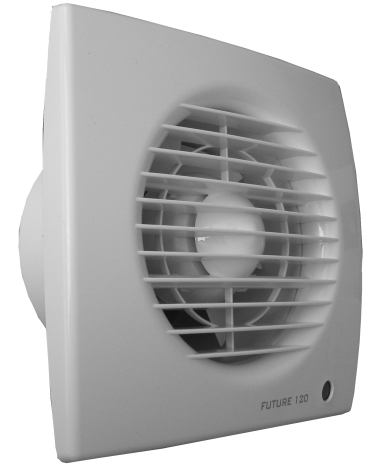

Wall & Ceiling Extractor Fan
|
|
 |
  |
|
Features
- Suitable for wall or ceiling mounting in bathrooms and toilets.
- Can discharge directly to the outside of an individual or central ducting system.
|
|
Motor
- Type - shaded-pole induction motor.
- 230V, single-phase, 50Hz
- Bearings - sleeve
- Maximum ambient temperature - 40°
|
  |
|
Dimensions
Model |
A |
B |
C |
D |
EØ |
100 |
158 |
168 |
82.4 |
19.7 |
99 |
120 |
180 |
190 |
101.8 |
26.4 |
118 |
150 |
200 |
200 |
129 |
25 |
152 |
|
Technical Data
Model |
V |
Hz |
W |
m³/h |
r.p.m. |
dB(A) |
100 |
230 |
50 |
13 |
95 |
2500 |
40 |
120 |
230 |
50 |
20 |
185 |
2500 |
45.5 |
150 |
230 |
50 |
32 |
280 |
2500 |
47 |
|
|
Special Features
Model |
Neon Light |
Timer |
100 |
Yes |
Yes |
120 |
Yes |
Yes |
150 |
Yes |
Yes |
|

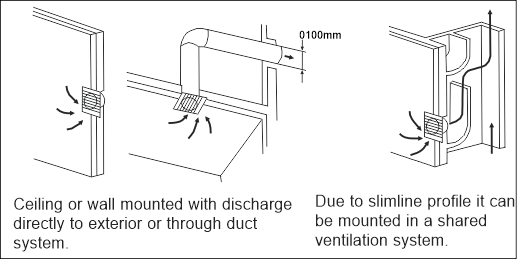

Installation
|
|
|
 |
Wiring
|
|
|
  |
|
|
|
 |
|
|
