Exhaust Fan Agricultural & Industrial
|
|
  |
  |
|
Features
- The Hi-volume Belt Drive fan unit is specifically designed to ventilate larger buildings, by moving substantial amounts of air at low pressure with minimal energy consumption.
- Available in two sizes, 1000mm and 1250mm diameter, each with single or three phase motors and the option of louvres and guards.
|
| |
Construction
- Constructed from galvanised steel with a specially designed stainless steel propeller, these fans are extremely hard wearing and robust in application. The drive mechanism comprises of a sealed for life maintenance free ball bearings, which means low noise and vibration levels.
- Units are supplied fully assembled complete with a standard safety guard on suction side and counter balanced air operated louvre shutter on outlet.
|
  |
Motors
- The motors are to be foot mounted totally enclosed metric type to Ip55, with sealed for life bearings and class F insulation, suitable for operating temperatures up to 50°C.
- Motors are constructed with finned aluminium casing to provide excellent heat dissipation resulting in a flexible and durable motor.
|
Impellers
- Propeller blades are fixed pitch. The six blades are attached to a mild steel powder coated hub.
- The complete assembled propeller unit is balanced to grade G6.3.
|

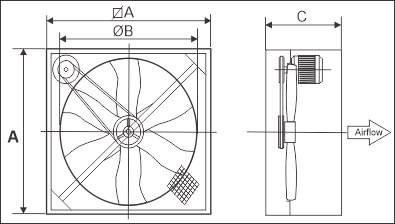

Dimensions
|
| Model |
A* |
B∅ |
C |
Description |
| HV100 |
1000 |
995 |
400 |
Guards only |
| HV100L |
1000 |
995 |
400 |
Louvre |
| HV125 |
1380 |
1380 |
400 |
Guards only |
| HV125L |
1380 |
1380 |
400 |
Louvre |
|
Technical Data
|
| Model |
V |
Kw |
A |
Hz |
r.p.m. |
m3/hr |
dB |
Kg |
| HV100 |
400 |
0.75 |
2 |
50 |
505 |
30000 |
76 |
43 |
| HV100L |
400 |
0.75 |
2 |
50 |
505 |
30000 |
76 |
43 |
| HV125 |
400 |
1.1 |
2.8 |
50 |
431 |
42000 |
78 |
68 |
| HV125L |
400 |
1.1 |
2.8 |
50 |
431 |
42000 |
78 |
68 |
|
| |
 |
|
|
