In-Line Tube Fan
|
|

|
Features
- Powerful in-line tubular fan for installation in rigid or flexible ducting
- Is designed for the ventilation of homes or similar premises.
- Easy installation.
|
  |
Motor
- The motor bearings need no maintenance
- Two-speed motor. The new IMF range of mix flow inline tube fans comes complete with a 2-speed selector switch
|
Wiring
- Refer to manufacturer's data in package.
  |
| |
|
|
|
| |
|

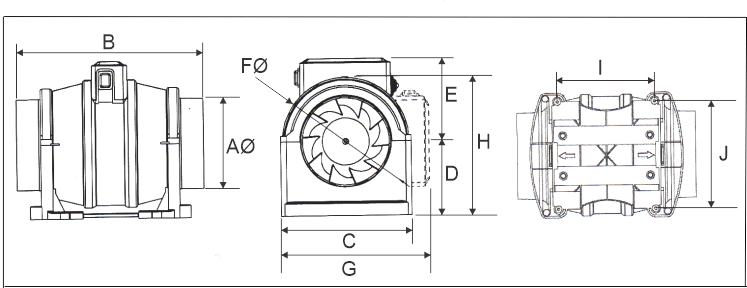

Dimensions
|
| Model |
Aø |
B |
C |
D |
E |
Fø |
G |
H |
I |
J |
| IMF100 |
97 |
296 |
179 |
104 |
113 |
174 |
202 |
190 |
140 |
154 |
| IMF125 |
124 |
256 |
179 |
102 |
113 |
174 |
202 |
190 |
140 |
154 |
| IMF150 |
147 |
298 |
194 |
109 |
127 |
195 |
223 |
211 |
182 |
170 |
| IMF200 |
198 |
310 |
254 |
129 |
146 |
228 |
272 |
243 |
120 |
236 |
|
| |
|
Technical Data
|
| |
Airflow m3/s @ Static Pressure vPa |
|
|
|
|
|
|
| Model |
|
r.p.m. |
0 |
25 |
50 |
75 |
100 |
150 |
200 |
V |
FLC Amps |
Input kW |
dB(A) 3m Inlit |
dB(A) 3m Outlet |
Kg |
| IMF100 |
High |
2300 |
0.067 |
0.059 |
0.049 |
0.038 |
0.026 |
0.008 |
|
240 |
0.15 |
0.034 |
45 |
45 |
2.4 |
| Low |
2000 |
0.060 |
0.052 |
0.042 |
0.031 |
0.020 |
0.004 |
|
240 |
0.15 |
0.034 |
44 |
43 |
| IMF125 |
High |
2300 |
0.097 |
0.089 |
0.078 |
0.060 |
0.033 |
0.004 |
|
240 |
0.16 |
0.036 |
44 |
45 |
2.4 |
| Low |
2000 |
0.085 |
0.074 |
0.060 |
0.041 |
0.0323 |
|
|
240 |
0.15 |
0.035 |
43 |
43 |
| IMF150 |
High |
2400 |
0.162 |
0.156 |
0.150 |
0.143 |
0.136 |
0.119 |
0.098 |
240 |
0.30 |
0.073 |
55 |
56 |
3 |
| Low |
1900 |
0.124 |
0.115 |
0.107 |
0.099 |
0.090 |
0.072 |
0.038 |
240 |
0.26 |
0.06 |
50 |
51 |
| IMF200 |
High |
2480 |
0.264 |
0.257 |
0.250 |
0.242 |
0.233 |
0.210 |
0.178 |
240 |
0.56 |
0.125 |
|
|
4 |
| Low |
2266 |
0.231 |
0.223 |
0.215 |
0.205 |
0.194 |
0.166 |
0.116 |
240 |
0.53 |
0.113 |
|
|
|
| |
|
DVS
|
|
Extract Valve
|
|
  |
Features
- Metal
- Powder coated
- White
- Adjustable air flow
 |
|
| |
|
    |

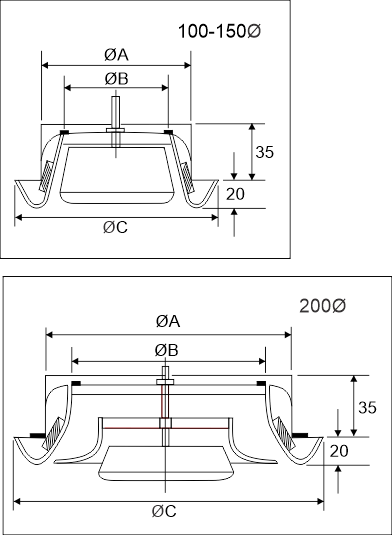

Dimensions
|
| Model |
A∅ |
B∅ |
C∅ |
D |
Kg |
| DVS100 |
100 |
70 |
145 |
55 |
0.12 |
| DVS125 |
125 |
95 |
160 |
55 |
0.15 |
| DVS150 |
150 |
115 |
195 |
55 |
0.20 |
| DVS200 |
200 |
172 |
240 |
55 |
0.34 |
|
| |
 |
MAG
|
|
Metal Air Grille
|
|
  |
Features
- Metal powder coated white grille for external or internal use.
|
  |
| |
|

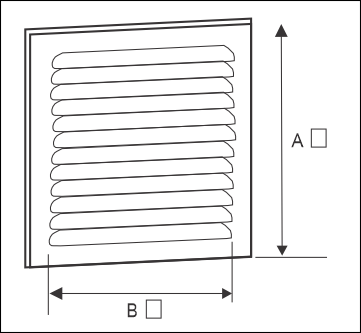

Dimensions
| Model |
A |
B |
| MAG-150 |
150w X 150h |
100w X 105h |
| MAG-200 |
200w X 200h |
150w X 155h |
| MAG-250 |
250w X 250h |
200w X 195h |
| MAG-300 |
300w X 300h |
240w X 235h |
|
| |
|
PF
|
|
Flexible Ducting
|
|
  |
Features
- Aluminium flexible ducting
- Supplied in 10m compressed lengths with 3 of the popular sizes
- Available in 5m lengths as well
|
| |
|
Dimensions
|
|
| Model |
ømm |
Length |
| PF100-10 |
102 |
10 |
| PF100-5 |
102 |
5 |
| PF125-10 |
128 |
10 |
| PF125-5 |
128 |
5 |
| PF150-10 |
152 |
10 |
| PF150-5 |
152 |
5 |
| PF200-10 |
203 |
10 |
| PF250-10 |
254 |
10 |
| PF300-10 |
305 |
10 |
| PF350-10 |
357 |
10 |
|
|
| |
|
PVC
|
|
Duct Tape
|
|
  |
Features
|
| |
|
 |
|
