Mini Centrifugal Roof fan

   Public Area
 RVF
Features
  • The Mini Centrifugal Roof Fan series are the new type roof extract units available in 2 sizes and suitable for vertical and horizontal installation.
  • The low noise external rotor motor and high efficient backward bladed impeller meets the requirement of efficient ventilation in residential, commercial and light industrial applications

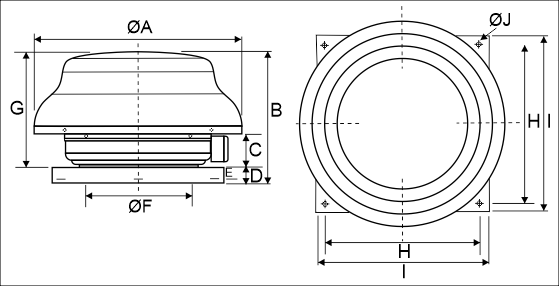

  RVF Dimensions
Dimensions
Model A B C D E F G H I J NW Kg GW Kg
RVF-150 400 239 72 38 17 148 201 300 340 9 5.6 6.4
RVF-250 484 302 72 38 30 248 264 360 400 9 8.8 10.1
Technical Data
Model W m3hr Pa dB
RVF-150 80 450 340 63
RVF-250 181 1150 595 71

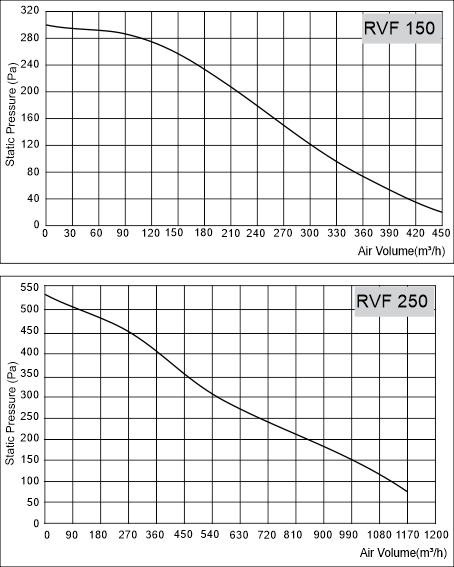

RVF Technical Data

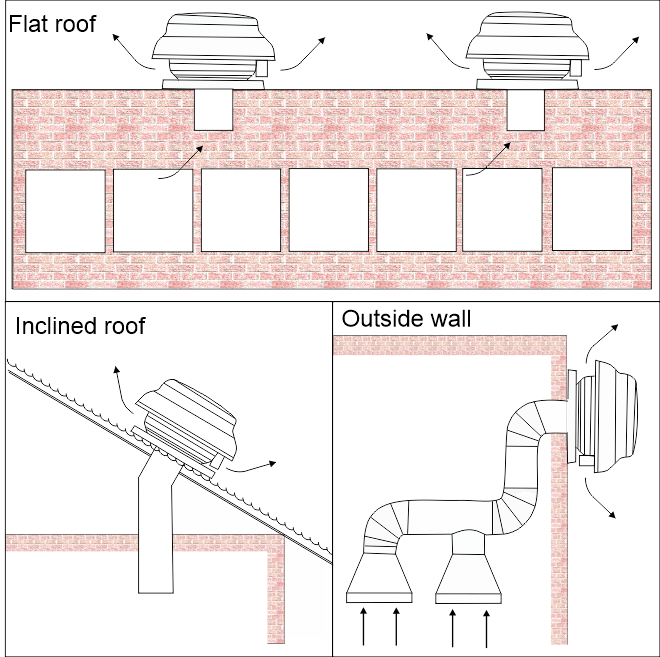

RVF Installation

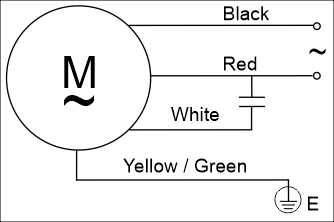

Wiring

RVF Wiring
