In-Line Tube Fan
|
   |
  |
Features
- Wide range of residential, commercial and industrial exhaust or supply air applications.
- Direct connection to standard diameter circular ducting and comes standard with manufacturing.
- Easy to install
- Performance up to 0.51m3/s
- Static pressures up to 650Pa.
|
Special Features
- Can be mounted on any angle and suitable for ducting on intake and/or discharge side and for supply or exhaust applications.
|
Motors
- Type - external rotor, squirrel cage induction motor.
- Electrical supply 220-240 V
- Single-phase
- 50Hz (60Hz available upon request)
- Bearings - sealed for life, ball.
- Speed - controllable with 2-speed switch available for Hi/Lo speed operation.
- Motor - Ip44 Protection
|
Construction
- Corrosion resistant pressed galvanised sheet steel body with backward-curved centrifugal impeller
- Electrical terminal on flying lead
|

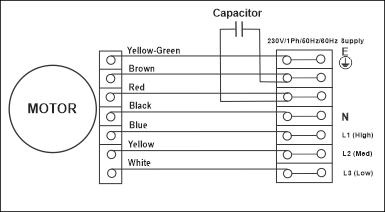

Wiring
|
  |

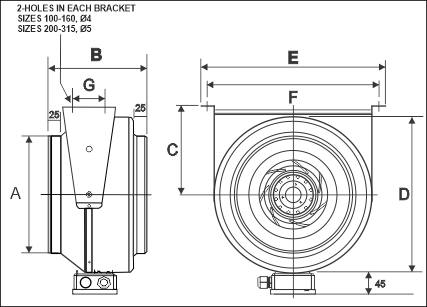

Dimensions
|
|
| |
| Model |
A |
B |
C |
D |
E |
F |
G |
Kg |
| HIT100 |
98 |
205 |
130 |
236 |
284 |
270 |
47 |
3.7 |
| HIT125 |
123 |
193 |
130 |
236 |
284 |
270 |
47 |
3.7 |
| HIT150 |
148 |
195 |
165 |
278 |
326 |
312 |
47 |
3.6 |
| HIT200 |
198 |
235 |
190 |
333 |
392 |
372 |
100 |
5.5 |
| HIT250B |
48 |
210 |
190 |
333 |
392 |
372 |
100 |
5.3 |
| HIT315B |
313 |
265 |
227 |
400 |
460 |
440 |
100 |
8.8 |
|

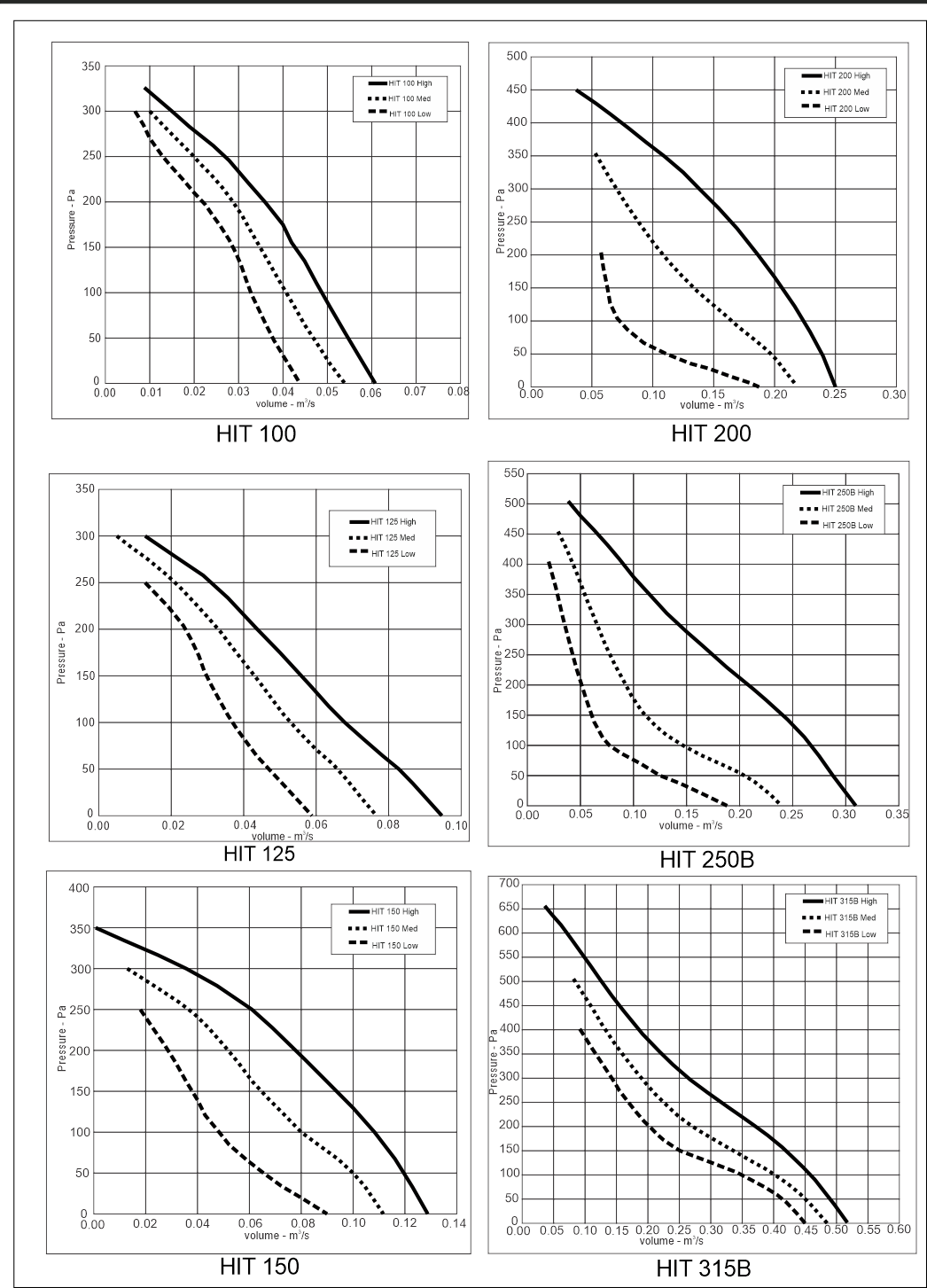

Technical Data
| Model |
V |
Hz |
|
W |
r.p.m. |
Speed Controller |
m3/hr H |
m3/hr M |
m3/hr L |
| HIT100 |
230 |
50 |
47 |
59 |
2641 |
REB 2.5N |
219 |
194 |
158 |
| HIT125 |
230 |
50 |
47 |
64 |
2550 |
REB 2.5N |
342 |
277 |
212 |
| HIT150 |
230 |
50 |
51 |
62 |
2578 |
REB 2.5N |
464 |
403 |
324 |
| HIT200 |
230 |
50 |
53 |
155 |
2502 |
REB 2.5N |
914 |
792 |
680 |
| HIT250B |
230 |
50 |
55 |
165 |
2480 |
REB 2.5N |
1119 |
867 |
680 |
| HIT315B |
230 |
50 |
56 |
240 |
2480 |
REB 5N |
1861 |
1746 |
1616 |
Compared with sleeve bearing, ball bearing has the following advantages: Long life, low maintenance, low temperature compatibility.
|
| |
|
   |
| |
|
 |
|
