Silent In-Line Duct Fan


Features
  • Low profile mixed flow in-line fan.
  • Offers ventilation solutions for hotels, offices etc with  breakout issues and where very low noise is required.



Motors
  • Two-layer sound absorbent cotton and sound wave holes are designed inside to reduce noise level.
  • Double diameter connection makes an airtight, leak proof and shockproof construction.
  • Inside backdraft damper is designed to prevent return air.
  • A special joint is designed for easy installation and maintenance.
  • Impellers are of mixed flow design.
Construction
  • Ball bearings for all models.
  • Operating temperature range: - 20° - 60°C.
  • IP44 protection level.
  • Three speed switch on the connection box.
  • With CE, PSE, SAA, UKCA, UL, CB certification.
  • Electricity supply - 220-240V, single phase, 50Hz

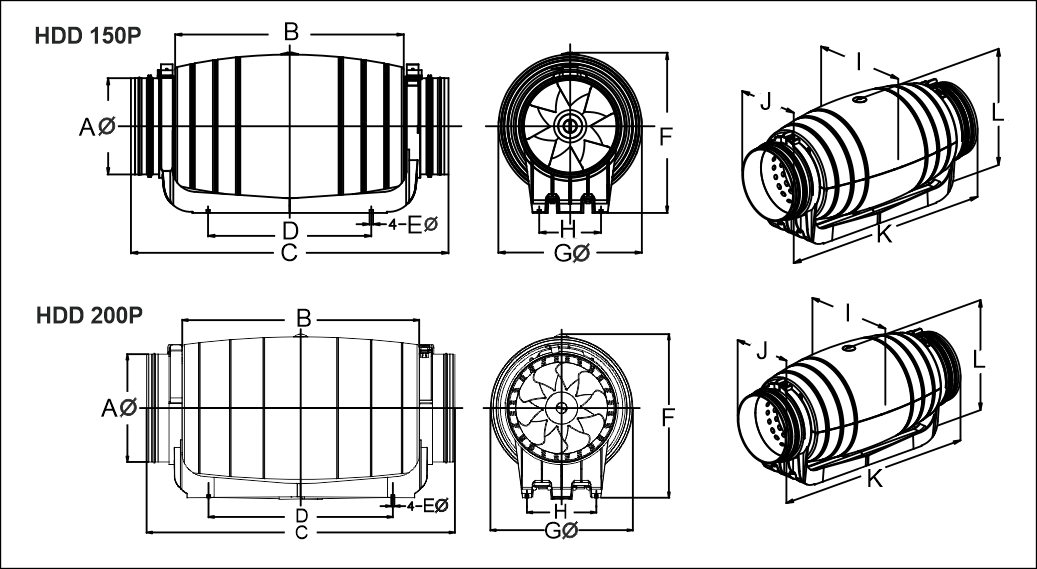

Dimensions

Model A B C D E F G H I J K L
HDD150P 149 352 488 251 5 244 221 95 221 149 488 244
HDD200P 198 436 567 339 7 301 262 128 262 198 567 301


Technical Data

Model V Hz Speed Amp W RPM m3/hr  Pa Kg
HDD150P 220-240 50 H 0.25 50 2550 530 300 4.0
L 0.20 43 1850 410 240
HDD200P 220-240 50 H 0.57 128 2450 840 352 5.9
L 0.52 123 1950 690 274

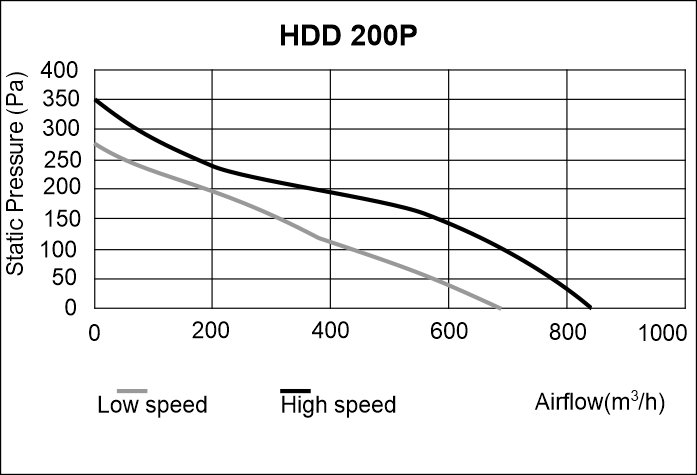

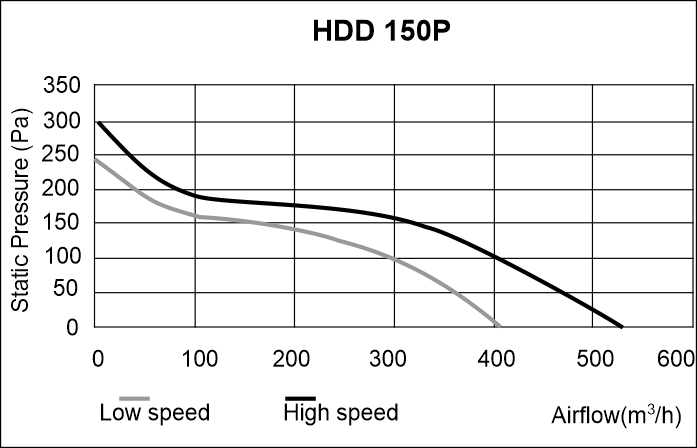

Performance
