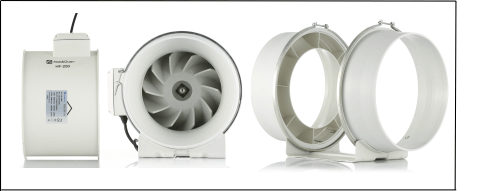

Mixed Flow In-Line Tube Fan
|
  |
  |
FeaturesÂ
- Compact design mixed ïŹow fan for  homes, apartments or similar premises.
- Also designed for heat transfer between rooms.
Â
|

|
Motors
- Electricity supply - 220-240V, single phase, 50 HzÂ
- Ball Bearings for all models.
- IP44 protection class.
- Operating temperature range:  20° -  60°C
- With CE, PSE, SAA, UKCA certification
|
Construction
- Casings are injection moulded plastic with integral mounting feet.
- Impeller are of mixed flow design.
|
Dimensions
|

|
Model |
A |
B |
C |
D |
E |
F |
Gâ
|
Hâ
|
Iâ
|
J |
K |
L |
HF250P |
174 |
315 |
286 |
150 |
150 |
150 |
8*11 |
261 |
247 |
383 |
286 |
249 |
HF315P |
216 |
386 |
357 |
187 |
178 |
181 |
8*11 |
325 |
312 |
446 |
257 |
386 |
 |

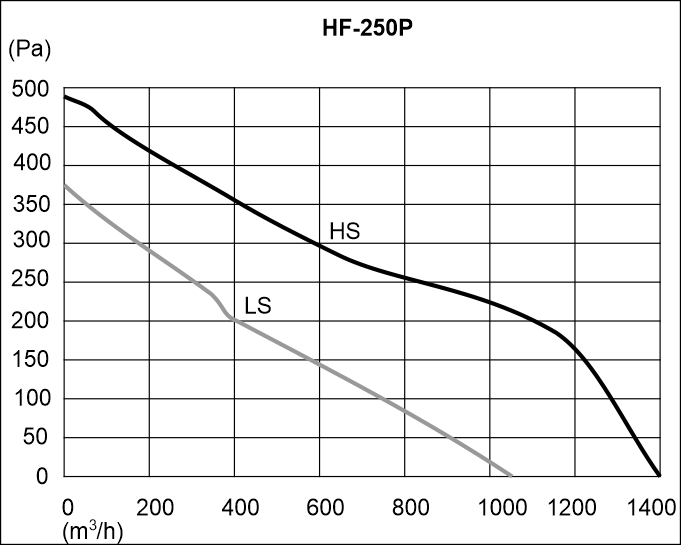

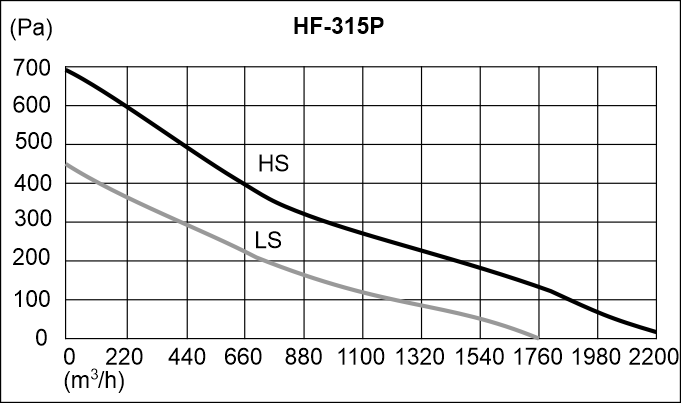

PERFORMANCE
|

|

|
 |
TECHNICAL DATA
Model |
V |
Hz |
Speed |
Current |
W |
RPM |
m3/hr |
Pa |
Kg |
HF-250P |
220-240 |
50 |
H |
1.20 |
225 |
2450 |
1405 |
488 |
7.5 |
L |
0.75 |
165 |
1850 |
1064 |
371 |
HF-315P
|
220-240 |
50 |
H |
1.90 |
390 |
2350 |
2206 |
693 |
11.0 |
L |
1.40 |
275 |
1650 |
1750 |
435 |
